Waterwash
Flexo Plate

  •   @Flexo Photopolymer Plate Making Machine
  •   For Waterwash flexo Plate Making Equipment
  •   (Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)
  •  Plates suitable : Label, film, paper, corrugated board, paper carton,  bag, Tetra pak etc. Exposure + Washout + Drying +Treatment (Light finishing) in complete set @C-A2SSF
  •   All stainless steel.
  •   Exposing+drying+washout+treatment.
  •   With water circulation & filtration system.
  •   Simple operation, best plate result

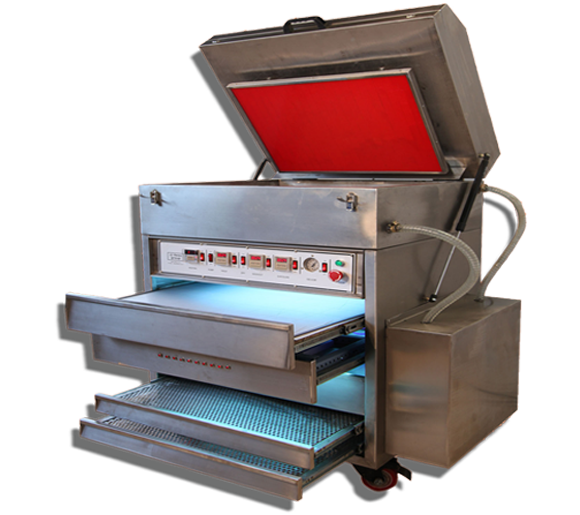

Product Image


MODEL UNIT MEASUREMENT(cm) N/W G/W WATT
@2430 ET EXPOSING+TREATMENT 132 x 120 x 60 250KG 350KG 1.5KW
@C-A2SSF EXPOSING+DRYING +WASHOUT+TREATMENT 120 x 100 x 125 235KG 335KG 2.8KW
@3040 ET EXPOSING+TREATMENT 145 x 114 x 76 300KG 450KG 2.5KW
@C-A3SSF EXPOSING + WASHOUT + TREATMENT 940 x 770x 400 85KG 125KG 1.2KW
@C-A4SSF EXPOSING+DRYING 760 x 650 x 400 56KG 90KG 1KW


  • Instant light up Philips high intensity lamps
  • Unique digital timers for back/main exposure
  • Excellent lamps cooling / exhausting system
  • Quick vacuum drawdown pump with indicato
  • High temperature water washout
  • With water circulation system
  • Special arrangements of brush
  • With residue filtration system


  • Drying drawer with uniform heat distribution
  • Temperature adjustable by a precise controller
  • Unique air circulation and exhaustion design
  • Over heat sensor for safety and protection
  • Chemical free operation, simple, easy and save
  • Digital timer for light finishing control
  • Philips UVC high intensity lamps equipped
  • With powerful air exhausting for big size models
